HITEC - HRC40485S - MD485HW 32BIT STANDARD

HITEC - HRC40485S - MD485HW 32BIT STANDARD

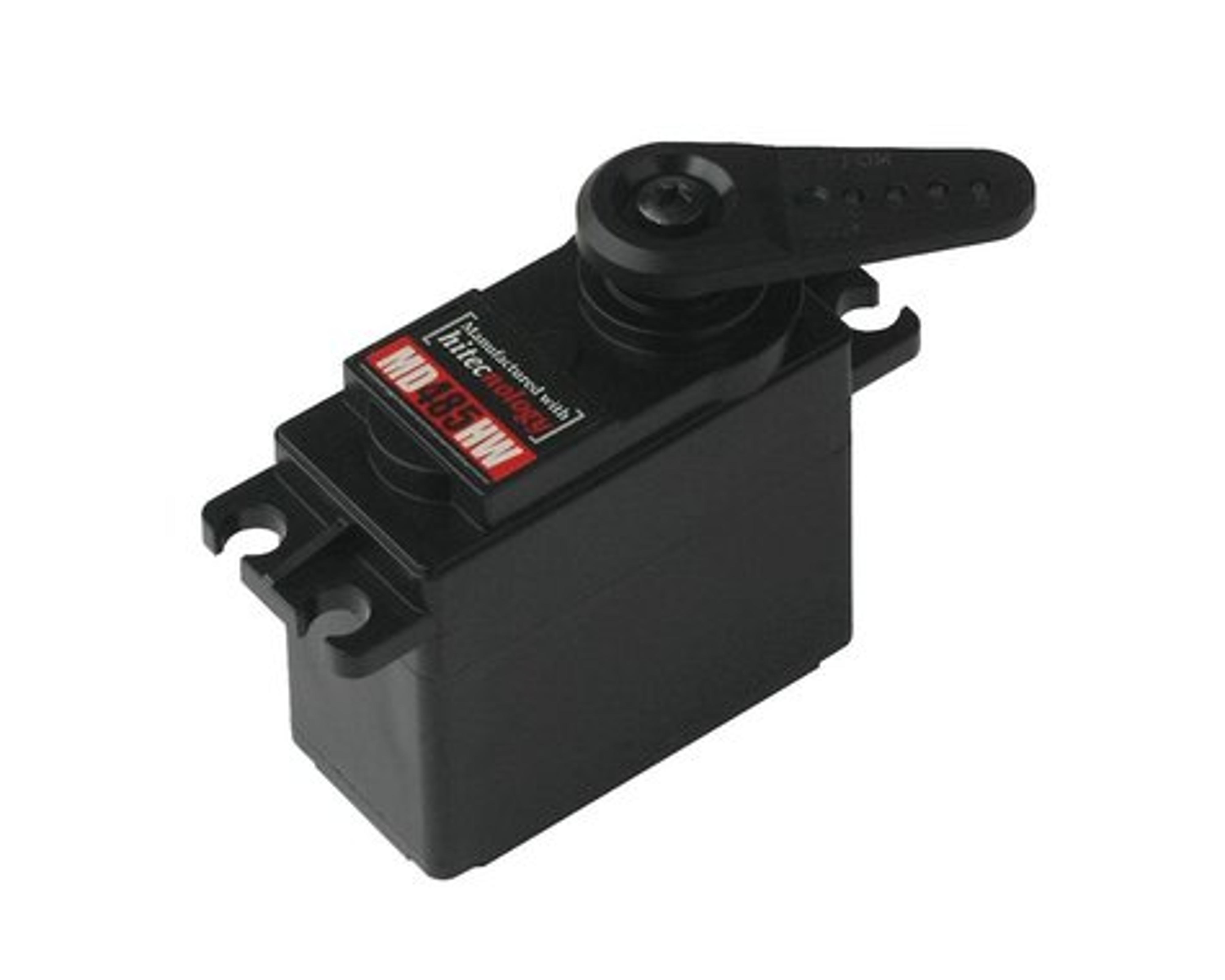

The Hitec MD485HW 32bit Digital Standard Karbonite Gear Drag Servo features a magnetic encoder position sensor for increased accuracy and durability. This performance enhancement provides higher centering precision, straighter tracking and faster times on the strip, making it the ideal answer for the radio control drag racing enthusiast. Hitec’s 32bit D-series circuit, 4096-step resolution and zero backlash Karbonite gears make the MD485HW the durable, dependable servo that Team Hitec drivers recommend. Plus, it is priced right, costing much less than most servos in its class.

Features:

• High Resolution 32-bit (4096 steps) Programmable Digital Circuit
• PWM or TTL Protocol Capability
• Magnetic Encoder Position Sensor
• Wide Operating Voltage (4.8 8.4V)
• Heavy-Duty, Long Life Motors
• IP65 Rated Cases
• Customization and Modification Options Available
• Custom Connector Options Available

Programmable Functions:

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save / Load
• Program Reset

Specifications:

• Performance:
  • Operating Voltage Range: 4.8V 8.4V DC
  • Speed: 0.20 0.15 Sec @ 60°
  • Maximum Torque Range: 67 103 oz. / in. (4.8 7.4 kg. / cm.)
  • Current Draw at Idle: 30 mA
  • No Load Operating Current Draw: 320 mA
  • Stall Current Draw: 1,500 mA
  • Dead Band Width: 2us
• Physical:
  • Dimensions: 1.57x0.78x1.50 (39.8x19.8x38.0mm)
  • Weight: 1.59oz (45.0g)
  • Circuit Type: 32 bit (4096 step)
  • Motor Type: Cored Carbon Brush
  • Gear Material: Plastic Resin Gears
  • Bearing Type: Top Ball Bearing
  • Output Shaft: 25 / 6mm Ø
  • Case Material: Plastic
  • Dust / Water Resistance: IP-65 Rated
