HOT RACING - HRASECT288 - ECX 2WD CV DRIVE SHAFT

HOT RACING - HRASECT288 - ECX 2WD CV DRIVE SHAFT

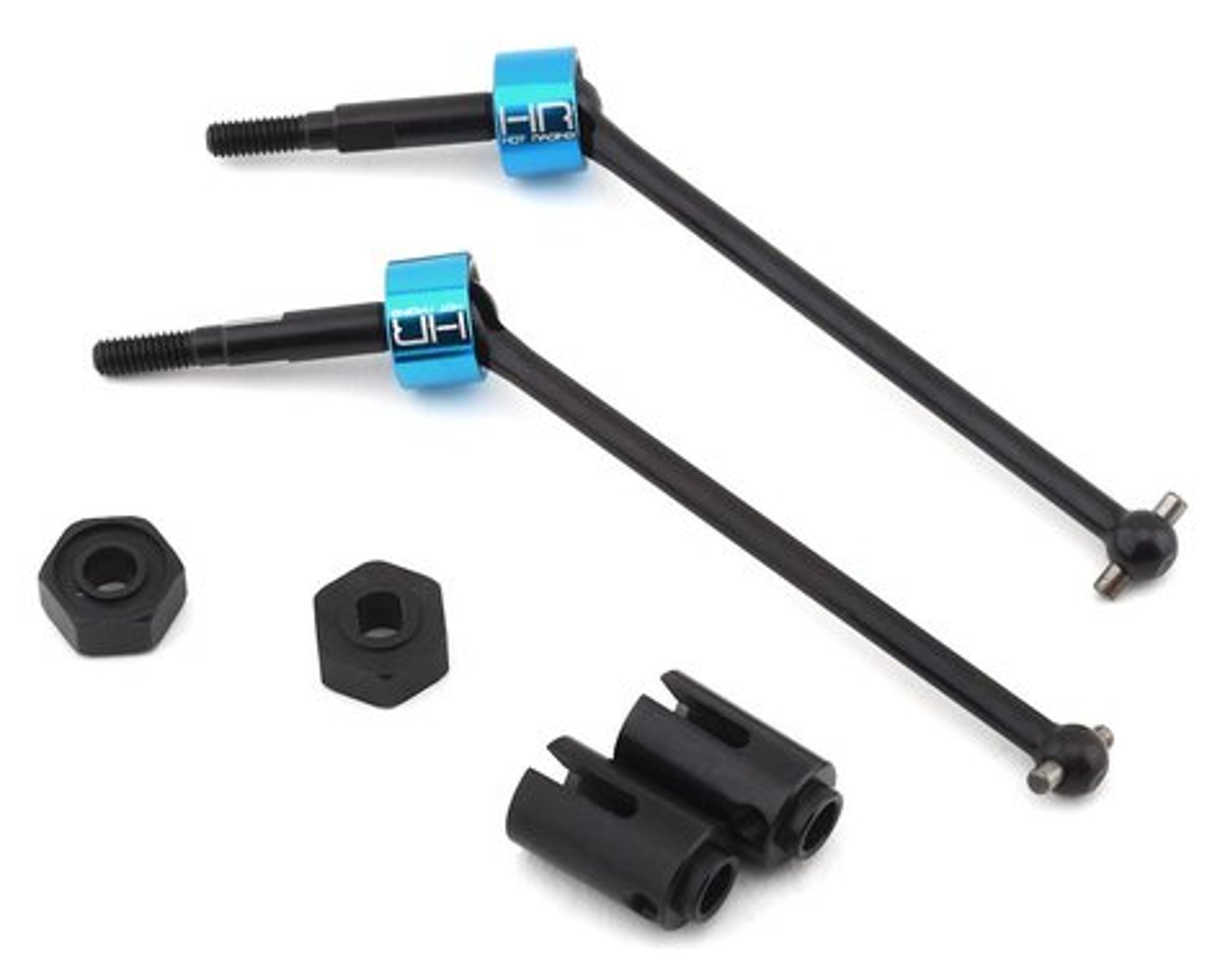

This is a pack of two Hot Racing ECX 2WD Steel CV Drive Shafts with Hex Hubs. Hot Racing optional upgrade heavy duty CV axle kit for 1/10th scale 2WD electric ECX vehicles, including the Amp, Circuit Stadium Truck, Ruckus Monster Truck, and Torment SCT. These axles will NOT work with the Boost Buggy. Kit includes axle, outdrive cups, and wheel hex hubs.

Features:

• Heavy duty CNC machined #45 hardened carbon steel construction
• Replaces factory plastic rear drive axles
• Hardened steel outdrives cups and 12mm wheel hex hubs
• Black oxide coated steel aids corrosion resistance
• Blue anodized aluminum pin capture rings with rubber o-rings to prevent movement
• Design eliminated CV pin setscrew
• Fully rebuildable
• Near zero backlash design

Specifications:
Overall length: 113 mm (4.45 inch)
Dogbone length pin to pin: 75mm
Dogbone pin diameter: 2.5mm

Includes:

• (2) rear assembled CVD axles
• (2) steel outdrive cups
• (2) steel 12mm keyed hex hubs

Requires:

• Reuses stock ECX1033 3x13mm driveshaft screws (screw shaft)
• Removable thread lock (e. g. blue Loctite) on screws threading into metal
• Light grease for CV joint helps maintain their longevity

Comments:

• NOT compatible with the ECX Boost Buggy
• For brushless and high power applications Hot Racing HRASECT288RC splined axles are recommended
• Replacement parts include: HRARECT288 (12mm hexes), HRARECT288A (outdrive drive hubs), HRARECT288C (CV rebuild), HRARECT288R (dogbone), and HRARECT288X (outer axle stub and hex)
