HOT RACING - HRATD8100X06 - ALUM 100MM HD BIG BORE

HOT RACING - HRATD8100X06 - ALUM 100MM HD BIG BORE

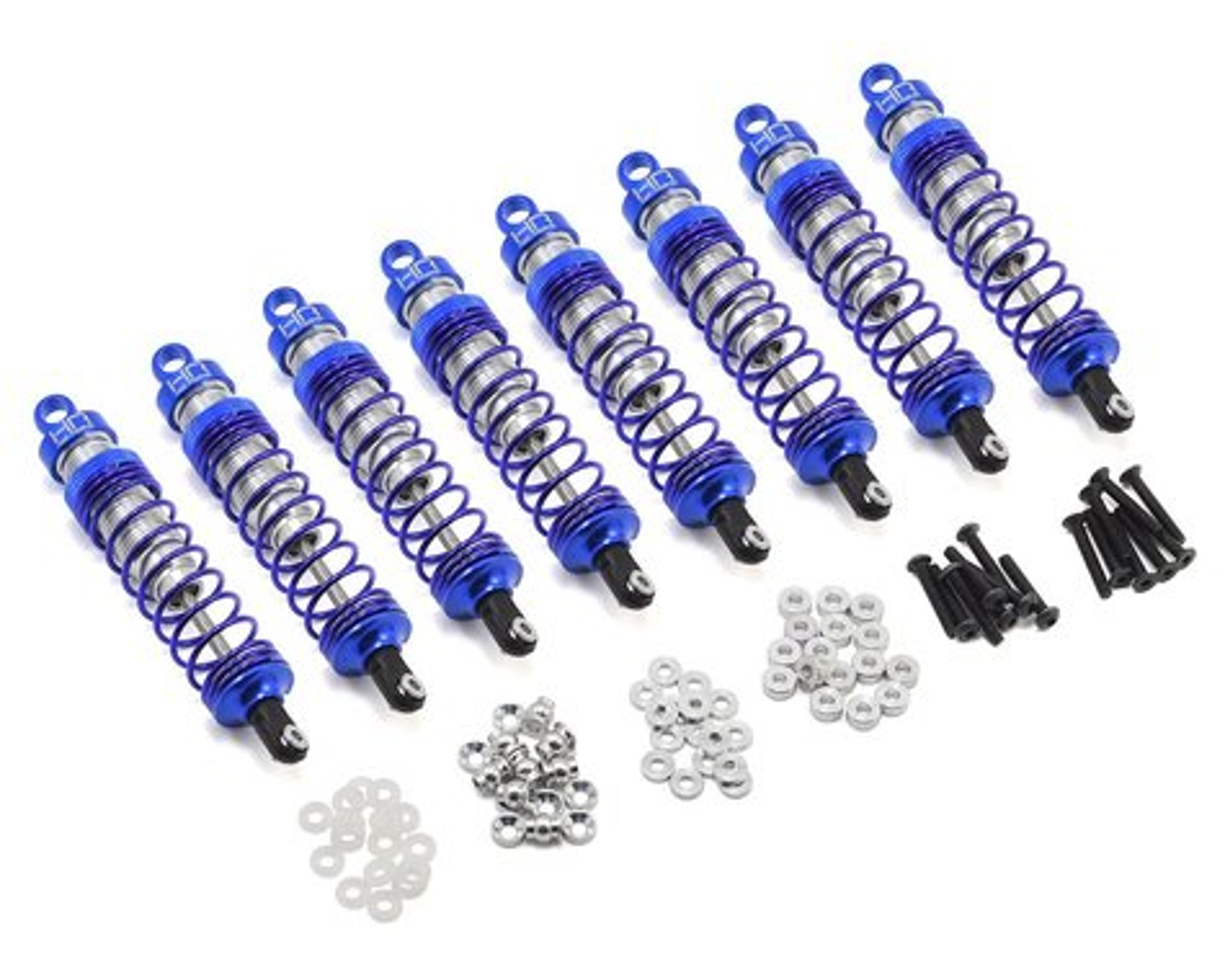

Hot Racing Traxxas T-Maxx Aluminum 100mm HD Big Bore Shocks are big bore threaded body aluminum shocks that fit the Traxxas T-Maxx, E Maxx, and other monster trucks that use eight 100mm shocks.

Features:

• CNC machined 6061-T6 billet aluminum shock bodies, collars, caps, and spring retainers
• "Big Bore" threaded shock bodies
• CNC machined 11mm Delrin pistons
• 3.5mm stainless steel shock shafts
• Silver and blue anodized aluminum components
• Vented shock caps with bladder seals for consistent rebound dampening
• Threaded shock collars with o-rings to prevent unwanted movement
• Composite plastic lower shock ends with aluminum balls
• Fully assembled, just add shock oil and bleed
• Requires Silicone shock oil and bleeding per the typical bladder shock bleeding procedure
• Replaces Traxxas Big Bore XX-Long Shocks: 2662, 3762, 3762A, 7462X

Specifications:
Extended length: 100mm
Compressed Length: 70mm
Overall length: 110mm
Spring: 1.54mm wire, 13 turn dual rate, 19.3mm OD, 69.5mm long

NOTE: Use spacers as need for installation
