product code:CSE060007500
UPC:400101348368
Brand:CASTLE CREATIONS
View more from CASTLE CREATIONS
availability: In stock

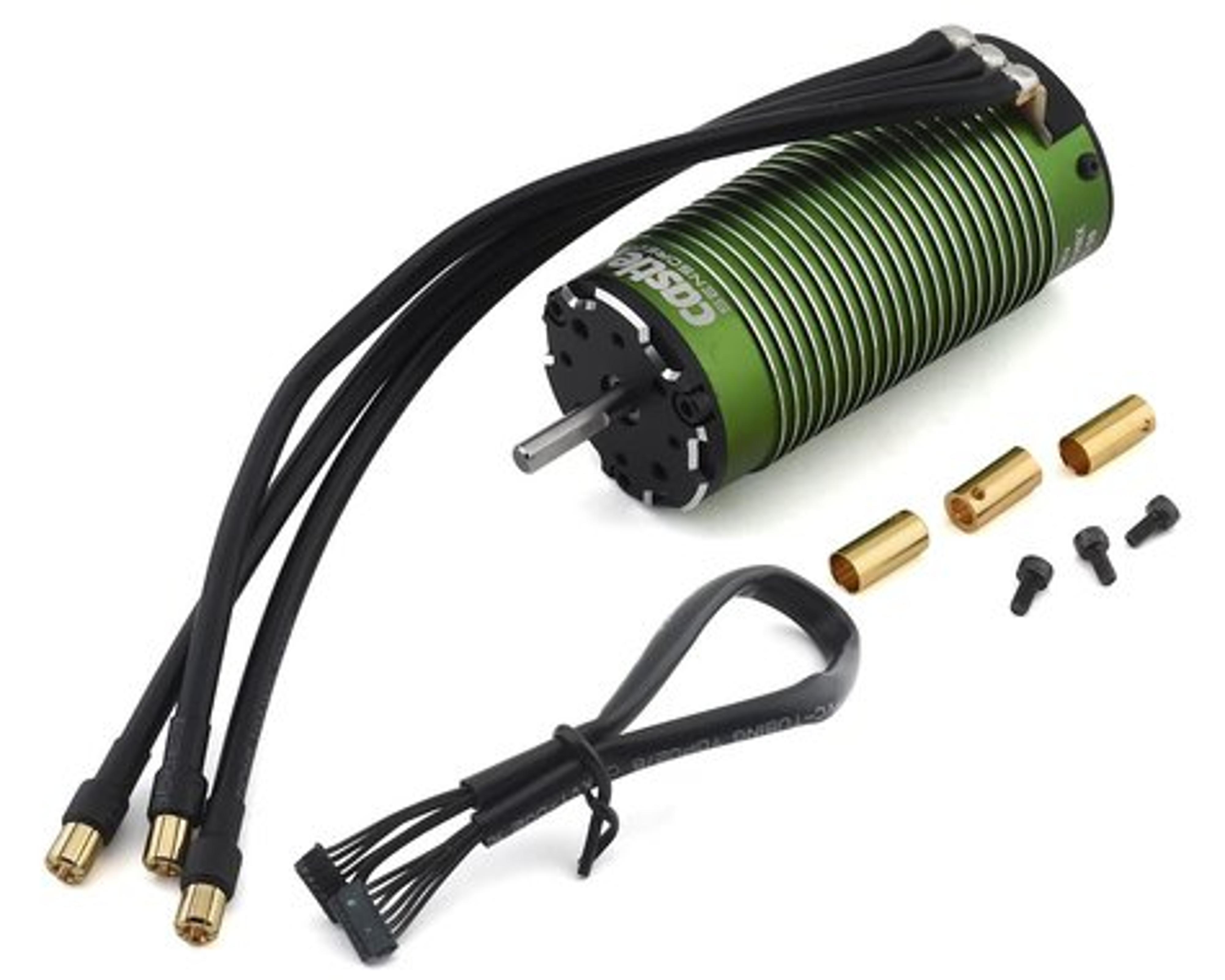

CASTLE CREATIONS - CSE060007500 - 1520 4 POLE SENSORED BRUSHLESS
The Castle Creations 1520-1650Kv 4-Pole Sensored Brushless Motor is a blast from the past with the added benefit of sensored capabilities! The 1520-1650Kv has all of the secret sauce that the big brother 1717-1650Kv has, but in a more compact diameter, fitting into smaller spaces without modifications to your chassis. This motor features a 4-POLE 12-SLOT design that boasts exceptional EFFICIENCY and produces LESS HEAT.
It is the perfect upgrade for any for 1/8, 1/7 and 1/6 scale vehicles weighing up to 18lbs and up to 8s LiPo. Vehicle examples include Losi LST2-E, Arrma Limitless, Typhon 6s, Kraton 6s, Kraton EXB, Infraction Felony 6s, Notorious 6s, Talion 6s, Kyosho Inferno, Traxxas E-Maxx, E-Revo, UDR, Summit and Redcat Shredder.

Without a robust and reliable design, efficiency will only go so far. RC enthusiasts love pushing their equipment to the edge. The Castle engineers know this and spared no expense when developing a design that could hold up to the harsh conditions that the RC community will throw at it, resulting in a cooler running motor. A cooler motor has a longer lifetime. Construction of this motor required careful component selection each verified through internal testing to ensure the HIGHEST EFFICIENCY possible. In the end, the result is a motor with unmatched quality, performance, and reliability. Castle wouldn’t put their name on anything less.

Features:
Specifications:
Input Voltage Range: 3s-8s LiPo
Kv: 1650
Max. RPM: 60,000
Size: Length: 3.50” (88.8mm) Diameter: 1.64” (41.6mm)
Weight (w/wires): 17.92 oz. (508g)
Shaft Diameter: 5mm
Mounting Hole Specifications: M3 and M4@25.4mm (1.0") Diameter
Cooling Fan: Not available
Connectors: 6.5mm male connectors

Application Guidelines: The 1520-1650kV motor is intended for use in 1/6, 1/7 and 1/8 scale vehicles weighing up to 18 lbs. and running up to 8s LiPo. Examples include Losi LST2-E&trade Arrma&trade: Limitless&trade, Typhon&trade 6s, Kraton 6s&trade, Kraton EXB&trade, Infraction&trade Felony&trade 6s, Notorious 6s&trade, Talion&trade 6s Kyosho Inferno&trade, Traxxas: E-Maxx&trade, E-Revo&trade, UDR&trade, Summit&trade Redcat Shredder&trade

Tech Notes:
