This is an optional RC4WD AX2 2-Speed Transmission. This transmission is a direct fit in the Axial Wraith, and SCX10 trucks, but short wheel base (SWH = 11.5") SCX10 trucks will require relocation of the battery tray or ESC box, and the Wraith will require you remove the shifters from the interior.

Features:

• CNC Machined Billet Aluminum
• Wraith/SCX10 direct fit
• 15T 32P Steel Pinion
• 60T 32P Delrin Spur
• Gear ratio Pinion/Spur ratio = 4:1
• 2 Speed
• Wide Steel 48 pitch internal gears
• 1st Gear Ratio =   5.05:1
• 2nd Gear Ratio =   1.78:1
• Slipper Clutch
• Shift Servo mount
• Compatible With Other Brand Pinions and Spur Gears
• Engineered by RC4WD UK
• Manufactured by RC4WD

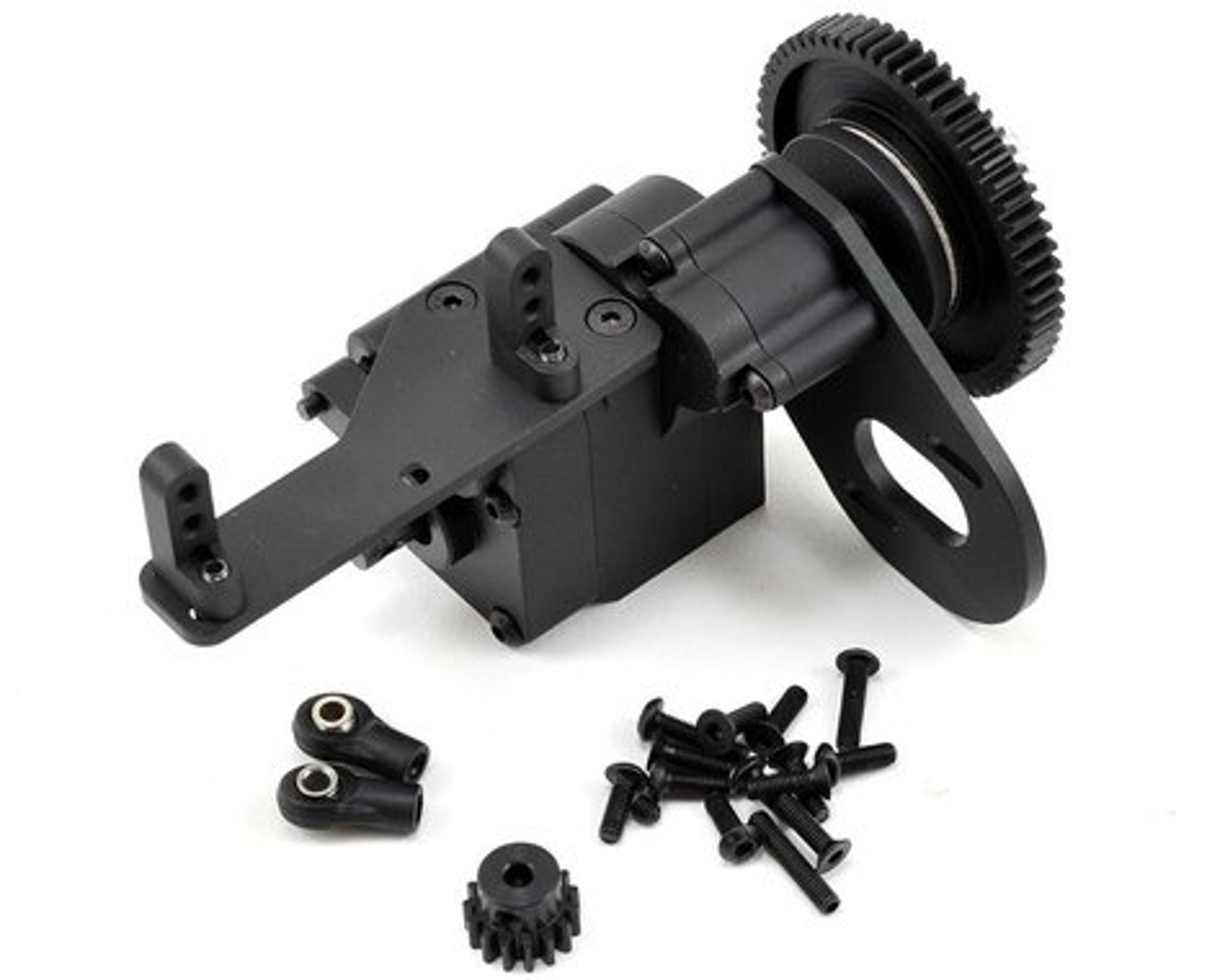

Includes:

• (1) AX2 Transmission
• (1) M3 x 15mm Set Screw
• (2) Mini Plastic Rod End
• (5) M3 x 10mm FHSC (Black)
• (4) M3 x 8mm BHSC (Black)
• (2) M3 x 12mm BHSC (Black)
• (1) M3 x 3mm Set Screw

NOTE:

• For best results you will need to remove the shifters from the Wraith interior.
  • Put the servo on and attach the shift linkage.
  • Install in Wraith and refit the interior.
• Without pinion/spur, stock Axial tranny is 2.6:1
