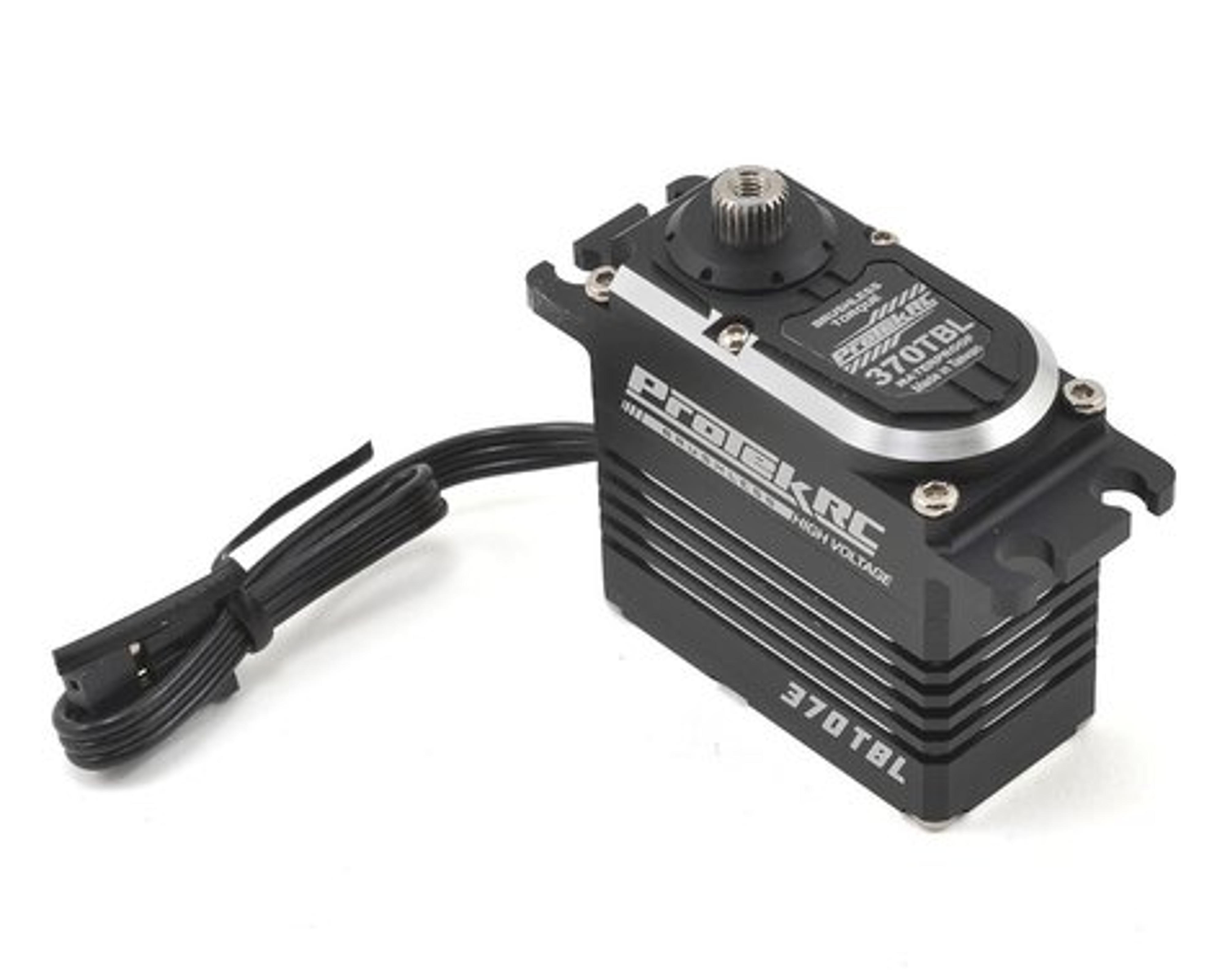

PRO-TEK RC - PTK370TBL - 370TBL BLACK LABEL WP HIGH TOR
product code:PTK370TBL
UPC:400101241898
Brand:PRO-TEK RC
availability: In stock
PRO-TEK RC - PTK370TBL - 370TBL BLACK LABEL WP HIGH TOR
Features:
- Ideal for any 1.9 to 2.2 Crawler application
- Waterproof up to 1 meter
- 600 oz-in of torque @ 6.0V, and .135 transit speed
- 650 oz-in of torque @ 7.4V, and .13 transit speed
- Brushless motor
- High voltage circuitry
- Full steel gears
- Full aluminum black anodized heat sink case
- Dual ball bearings
- 280mm servo lead
| Servo Model | 370TBL |
| Recommended Application | 1/10 to 1/8 Scale Crawler |
| Operating Voltage | 4.8V - 7.4V |
| Operating Temperature | 14° to 140° F (-10 to +60° C) |
| Operating Speed @ 6.0V | 0.135/60° sec |
| Operating Speed @ 7.4V | 0.13/60° sec |
| Dynamic Torque @ 6.0V | 600 oz-in (43.2 kg-cm) |
| Dynamic Torque @ 7.4V | 650 oz-in (46.8 kg-cm) |
| Stall Current @ 6.0V | 6A |
| Stall Current @ 7.4V | 6.4A |
| Motor Type | Brushless Digital |
| Output Shaft | 25 Tooth |
| Gears | Steel |
| Weight | 72g |
| Pulse/Frequency | 1520?s / 333hz |
| Dimensions | 40x20x37.8mm |
| Length (Bottom to Mount) | 28.4mm |
NOTE: Requires a servo extension lead for a drop-in TRX-4 fit.
