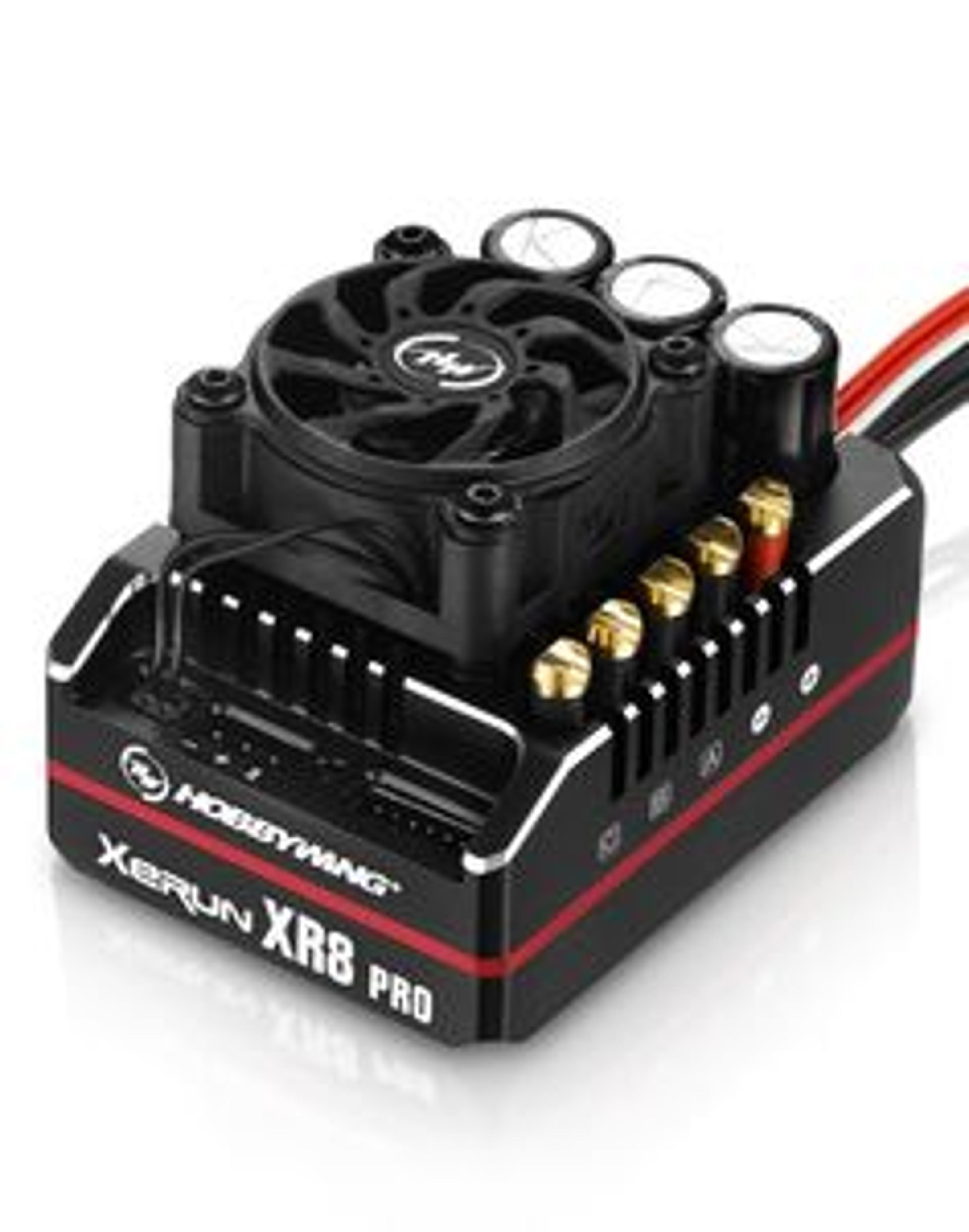

HOBBY WING - HWI30113302 - XERUN XR8 PRO G2 ESC

product code:HWI30113302

UPC:0506202132717

Brand:HOBBY WING

View more from HOBBY WING

availability: In stock

$204.99


Share on social media:

HOBBY WING - HWI30113302 - XERUN XR8 PRO G2 ESC

XeRun XR8 PRO G2 ESC

The XR8 Pro G2 ESC is designed to work in full-sensored mode at all times
when it is paired with a compatible HOBBYWING motor. For example,
G3 series 1/8th motors.

Advanced Boost & Turbo Timing Technology
This ESC paired with a compatible HOBBYWING motor can use the Turbo Timing technology which was designed for the successful XR10 Pro series ESC used in 1/10th On-Road and Off-Road competition.This ESC can support up to 48 degrees of Boost and Turbo Timing when paired with the new HOBBYWING
4268/4274 G3 motors with an increase of 50% more performance than the previous G2 series motor keeping you way ahead of the competition.

Battery-Reverse Polarity Protection
The XR8 Pro G2 ESC is designed with Built-in Reverse Voltage Protection
Circuit. The circuit protects the ESC components from reverse polarity
of the battery connections.

Wireless Programming / Upgrading / Data Logging
With HOBBYWING OTA programmer and a smartphone (with the
HOBBYWING HW Link V2 App installed), the user can program parameters,
upgrade firmware and check relevant data of the ESC.

Real Time Data Logging
With HOBBYWING OTA programmer, connect the HW Link V2 App to the ESC and open the real-time data logging function, to check the Throttle, Voltage, Current,
Temperature, RPM and other data in real-time operational status of the ESC and motor.
Note: Due to the range limit of Bluetooth,
the operational distance is only about 5 meters.

Fire-new Communication Protocol Speeds Up
Parameter Setting and Firmware Upgrading

The ESC adopts fire-new communication protocol which greatly improves the speed of setting parameters and upgrading firmware. The data transmission speed is increased by 2 times when being paired with the LCD G2 Program Box and 3-4 times faster when paired with the OTA Programmer.
Note: LCD G1 Program Box and WiFi Express Module still use old protocol,
so the data transmission speed remains the same as before!

Capacitor Thermal Protection
Capacitor thermal protection is designed and implemented into the ESC in which will effectively prevent capacitors from exploding and causing irreversible damage to the ESC due to overload.

Powerful Internal BEC
The built-in switch mode BEC with a maximum output of 15A and voltage
adjustable from 6V to 8.4V (step: 0.1V) allows the use of various standard servos and high voltage servos.

Multiple Programmable Items
The ESC contains nearly 30 adjustable parameters, including Throttle PWM Frequency, Brake Frequency, Softening Value / Range, Boost / Turbo Timing which are commonly used in 1/10th XR10 Pro series brushless ESC. It can accurately adjust the power settings to suit any driving style and track surface.

Advanced and Secure Electronic Switch
The dustproof and waterproof switch housing ensures a long reliable life for your ESC and electronic switch, it will not suffer from the problems most standard mechanical On / Off switches encounter.

Superior Dustproof Protection
The ESC is IP5X rated. It has superior dustproof protection in which protects the ESC in all types of environments.

Features:

  • Scale: 1/8th
  • Sensored/Sensorless: SD
  • Waterproof: No
  • Cont./Peak Current: 200A/1080A
  • Input Voltage: 2-4S Lipo/6-12 Cell NiMH
  • BEC Output: 6V-8.4V adjustable, 6A
  • Wires & Connectors: Black-12AWG-200mmx2
  • Output Wires: Black-12AWG-200mmx3
  • Fan Size:30x30x10mm
  • Fan Voltage Range: 5-8.4V
  • Size: 56.1mmx42.1mmx38.6mm
