KYOSHO CORP OF AMERICA - KYO34419T1B - 1969 CHEVY EL CAMINO SS396

KYOSHO CORP OF AMERICA - KYO34419T1B - 1969 CHEVY EL CAMINO SS396

TECHNICAL DATA
Length: Approx 46 1 mm Width: Approx 195 mm Height: 132 mm Wheelbase: 2 74 mm Tread:1 67 mm(F)/ 1 67 mm(R)
Tire Width : 2 7.7 mm Tire Diameter : 6 4 mm Weight Approx 1 65 0 g
Gear Ratio: 6. 5 4 :1 Top Speed : 40km / h Run Time : 15 min

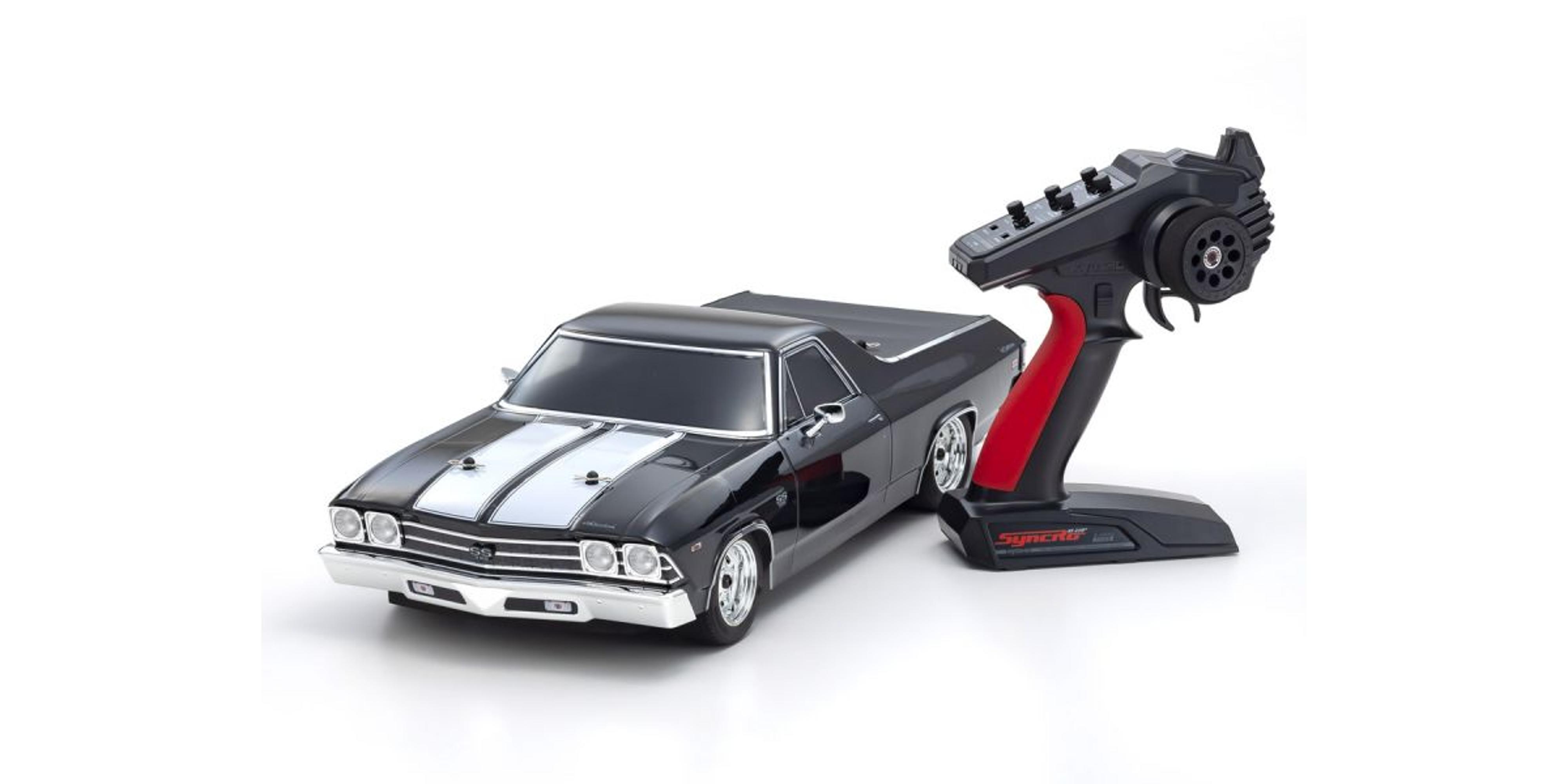

READYSET CONTENTS
Factory assembled chassis with graphics S ervo (KS 4081 04 WP ) SYNCRO KT 2 31P transmitter and KR 331 Receiver unit Kyosho KA060 91W ESC and G14L motor
REQUIRED FOR OPERATION
4 xAA battery for Transmitter 7.2V 8.4V NiMh or 7.4 Li Po battery and charger

Features:

• Fazer Mk2 Chassis FZ02L. Simple and efficient shaft driven 4WD design with improved performance. Light weight and low CG bathtub style design made of durable glass reinforced 66 nylon material.
• Licensed 1969 Chevy El Camino body. Plastic chrome plated grill and headlights. Tinted clear windows. LED ready with light buckets. ULTRA SCALE badges.
• Scale wheel design with brake rotor parts. Vintage style high grip tires and chrome plated rims.
• Improved steering and double wishbone suspension design for superior handling and damping characteristics. Plastic made of durable glass reinforced nylon material. Adjustable caster angle (3 settings).
• 12mm big bore shocks.
• Reliable shaft driven 4WD drivetrain design with slipper clutch.
• 2 bevel gear type diff system on front and rear.
• Easy gear mesh system. Stock pinion is 32T.
• Powerful Kyosho 550 size 14T brushed motor.
• Kyosho Speed House KA060 91W water proof brushed 60A ESC with Super plug connectors. 2S Li Po compatible.
• High response, high torque KS 4081 04 WP waterproof steering servo
