VANQUISH PRODUCTS - VPS09005 - VS4-10 ULTRA ROCK CRAWLER

IN STORE PICKUP ONLY - WE DO NOT SHIP THIS ITEM

VANQUISH PRODUCTS - VPS09005 - VS4-10 ULTRA ROCK CRAWLER

The Vanquish VS4-10 Ultra Rock Crawler Kit represents the pinnacle of scale RC models. The VS4-10 Ultra is manufactured using the highest quality materials, superior design, and the most durable portal axle platform available in its class! The VS4-10 Ultra offers unmatched features out of the box, and provides a building/driving experience that is sure to impress.

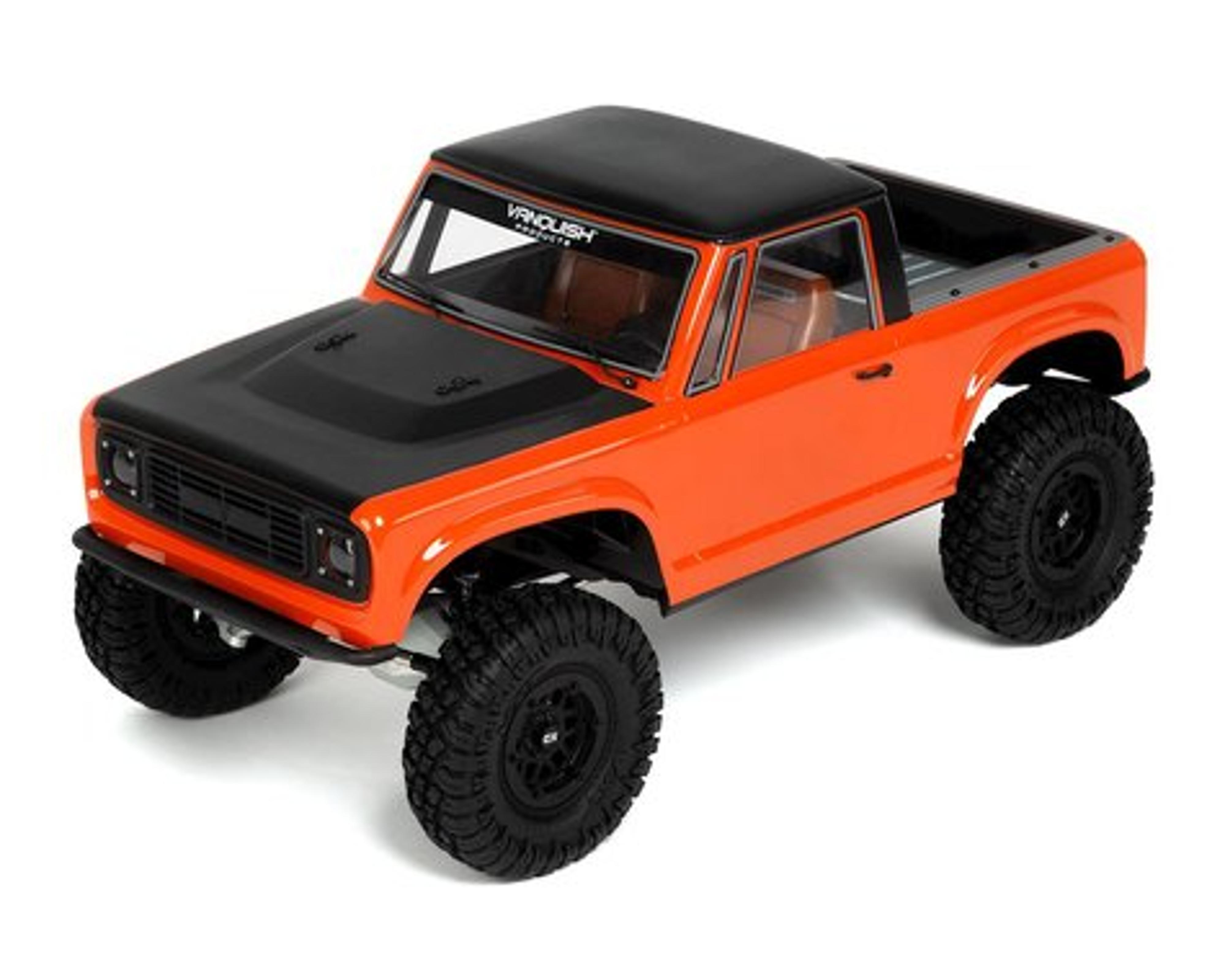

NOTE: Finished model shown in photos is for illustrative purposes only. This is a kit that requires assembly and painting. See needed to complete list below for a full list of items required to complete the model.

Specifications:

Wheelbase: 12.3"

Overall Width: 9.65" (245mm)

Overall Length: 19.3" (490mm)

Overall Height: 9.8" (250mm)

Overall Axle Ratio: 5.25:1

Portal Box Ratio: 1.4:1 (Includes VPS08353 20/28 Overdrive Portal Gear Set Front and Rear)

Internal Trans Ratio: Front 2.95 / Rear 3.15

Overall Gear Ratio: Front 57.8 / Rear 61.7

Overdrive Percentage: 6.5%

Included Pinion: 15T 32P for 3mm motor shaft

Included Spur Gear: 56T 32P

Needed to Complete:

• Shock Oil
• Tools
• Paint
• Grease
• Threadlock
• Battery
• Charger
• Radio System
• 540 size Motor (3mm Motor Shaft Recommended)
• ESC
• Steering Servo
• Servo Horn (20mm Length Recommended)
