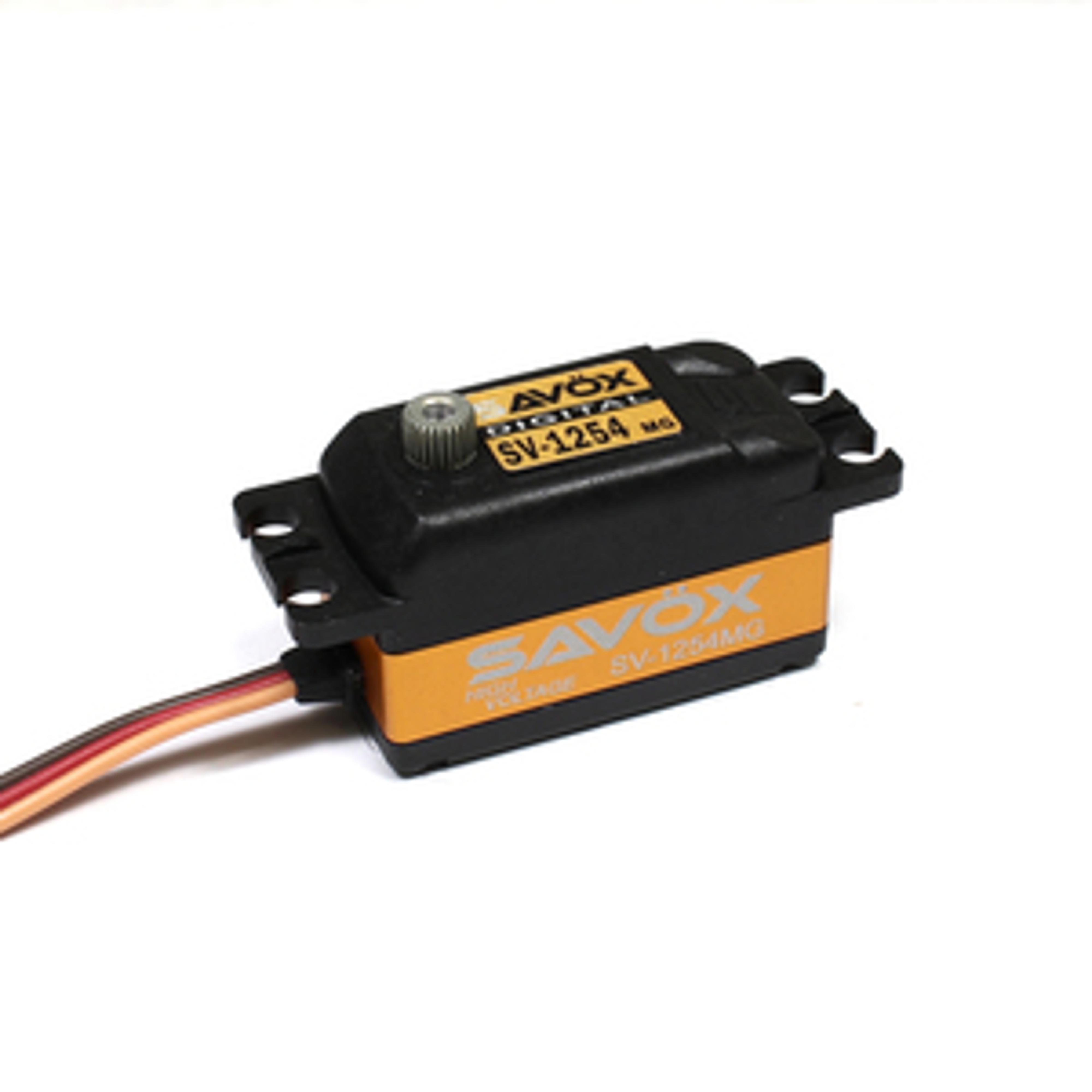

SAVOX - SAVSV1254MG - HIGH VOLTAGE CORELESS DIGITAL

SAVOX - SAVSV1254MG - HIGH VOLTAGE CORELESS DIGITAL

High Voltage Coreless Low Profile Digital Servo 0.085sec / 208.3oz @ 7.4V

The SV-1254MG servo is a high performance coreless servo with good torque and fast transit time in a low profile package.

Features:

• Steel gear train provide durability against heavy use.
• Capable of HV operation.
• Standard size performance in a low profile package.
• Ideal for 1/10 on road and other applications where space is tight.

Specifications:

• Torque @ 6v - 12.0kg/166.6oz-in
• Torque @ 7.4v - 15.0kg/208.3oz-in
• Speed @ 6v - 0.11 sec/60 deg
• Speed @ 7.4v - 0.085 sec/60 deg
• Dimensions L x W x H (mm): 40.8 x 20.2 x 25.4
• Weight: 46.0g
