TEAM ASSOCIATED - ASC27108 - RS0806 LP DIGI HV HI-SPD COMP

TEAM ASSOCIATED - ASC27108 - RS0806 LP DIGI HV HI-SPD COMP

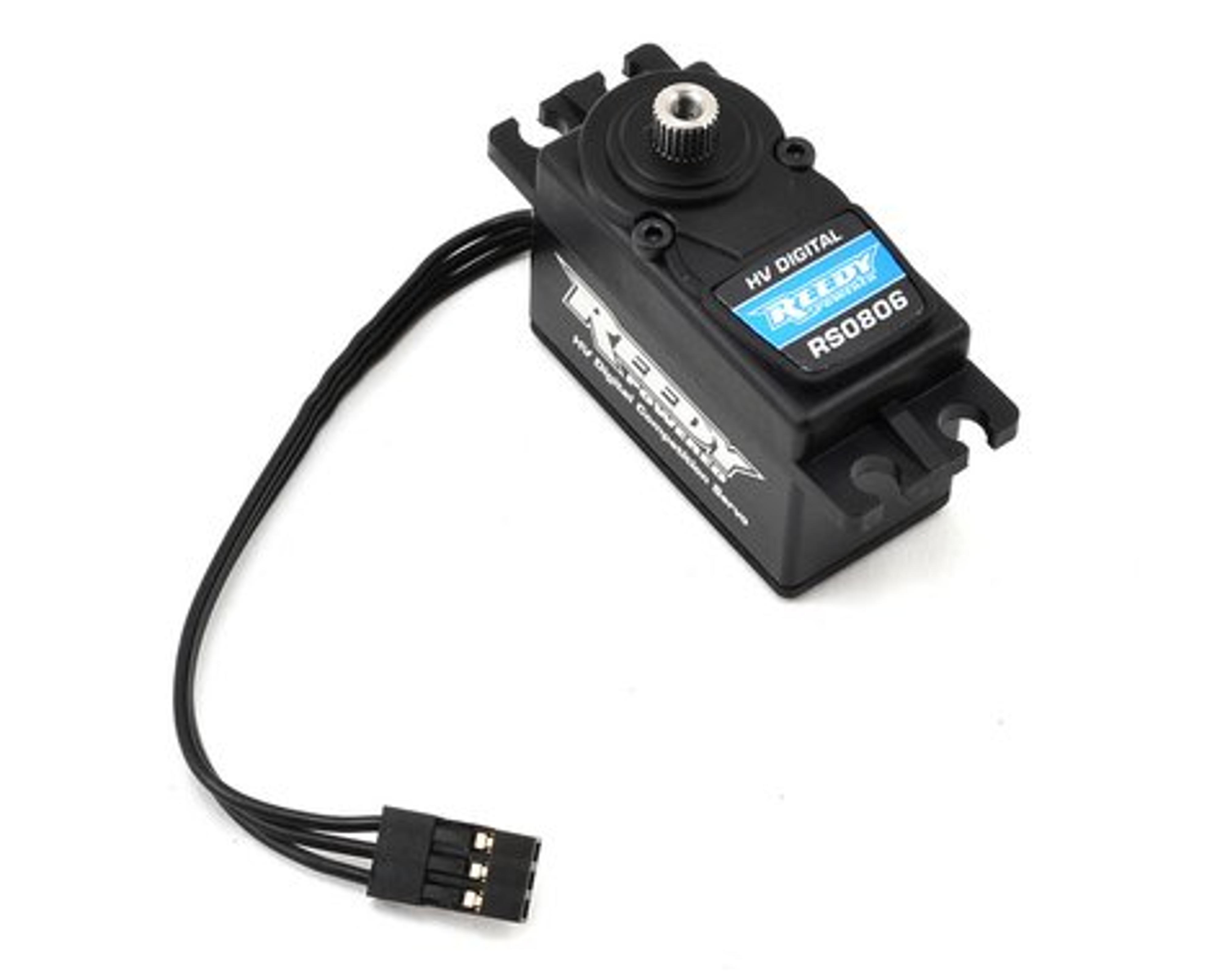

The Reedy RS0806 Low Profile Digital Hi-Speed Servo is race-proven and engineered for use in both touring cars and the latest generation 2WD and 4WD buggies. Precision metal gears, powerful motors, and an advanced microprocessor improve vehicle control while an integrated aluminum mid case lowers operating temperatures for fade-free operation. High voltage compatibility means that increased ESC BEC output voltage can be used without fear of damaging sensitive internal components.

Features:

• Compact, low-profile design
• Water and dust resistant
• Aluminum mid-case
• Powerful coreless motor
• Ultra-precise metal gears
• Dual ball bearings
• High-voltage compatible

Specifications:

• Input: 6.0V - 7.4V
• Speed:
  • @6.0V: 0.07 sec/60deg
  • @7.4V: 0.06 sec/60deg
• Torque:
  • @6.0V: 98.60 oz-in (7.1 kg-cm)
  • @7.4V: 115.26 oz-in (8.3 kg-cm)
• Dimensions: 39.5x20.0x30.5mm
• Weight: 53.0g
• Spline: 25
